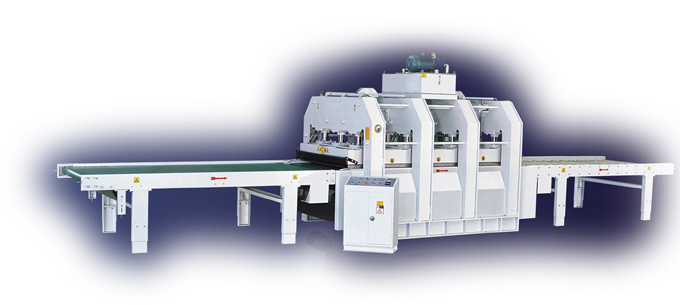

 Short cycle lamination hot press |
 |
| |
Model No. |
MTTA415B-300T1 |
MTTA513B-400T1 |
Working pressure |
300T (5kg/cm2) |
400T (6kg/cm2) |
Platen dimension |
1300x2500x45mm |
1650x4000x45mm |
Opening between platen |
300mm |
300mm |
Qty and Dia. of oil cylinder |
8pcs x Ф140mm |
12pcs x Ф140mm |
Closing speed |
20-60mm/ s |
20-60mm/ s |
Rated oil pressure |
24Mpa |
21Mpa |
Feeding speed |
15.5m/ min |
15.5m/ min |
Max. temperautre |
120℃ |
120℃ |
Heating method |
Steam or electricity heating |
Steam or electricity heating |
Overall size |
14500x2100x2800mm |
14000x2450x2800mm |
Net weight |
15T |
14T |
Installed power |
15kw |
12kw |
|
|
|
|
